PONDis 50 kg / 100 kg Bending bar

PONDis 50 kg / 100 kg Bending bar

Pedir aconselhamento

Description

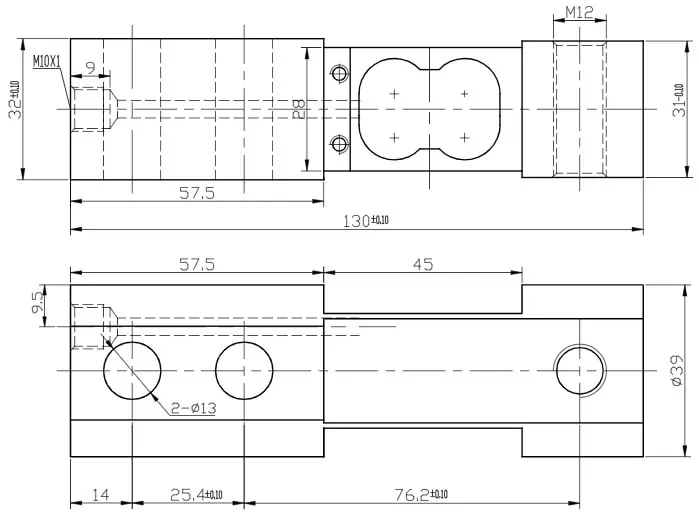

PONDis 50kg 2mV/V:

Technical data

Features & wiring schematic diagram

ATTENTION / IMPORTANT:
The PMV scale amplifier is only calibrated at the factory with one load cell. If more than one load cell is used in a weighing system (standard case: 1, 3 or 4 sensors), then after connecting all used and still unloaded load cells, the zero point voltage between the terminals 17 (GND/0 VDC) and 18 (+ signal 0-10 VDC) has to be measured with a voltmeter and set to a positive range. Using the zero point potenometer of the PMV scale amplifier, to set the zero point voltage (17 and 18) to a positive voltage value in the range from approx. +0.1 to +0.4 VDC.
